The VFIZ for Audi (complete set)

meas-set-1
meas-set-1vfiz-ext-cable
4.60001 5 5 Product
296,43 € (241,00 € excl VAT) each
Car Model
Control Method
Lanugage (Secondary)
Unit system

Extended features

No stock

Supported car models:

Audi A4 B7 2005 - 2008 with colorfull or red/orange FIS
Audi A4 B6 2001 - 2005with colorfull or red/orange FIS
Audi A4 B5 (8D) - Facelift - 2000 - 2001 (also some from 1999.5) - Instrument with digital clock plate
Audi A4 Cabrio (8H)
Audi A3 (8L) - Facelift - 2000 - 2003 (in some countriers till 2006) - Instrument with digital clock plate
Audi TT (8N) - Facelift - (MY >2000) - Instrument with digital clock plate
Audi A6 C5 (4B) - Facelift - 2000 - 2004 - Instrument with digital clock plate

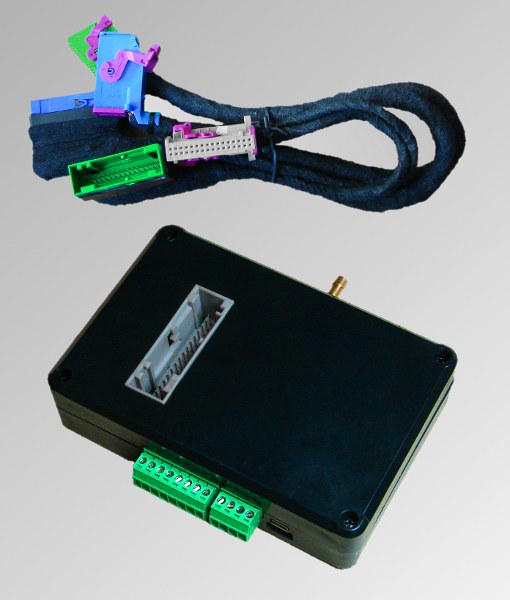

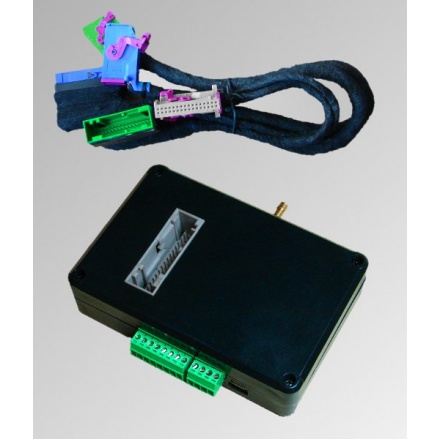

Complete set, the VFIZ compute modules and automotive grade wirring harness for real plug&play .

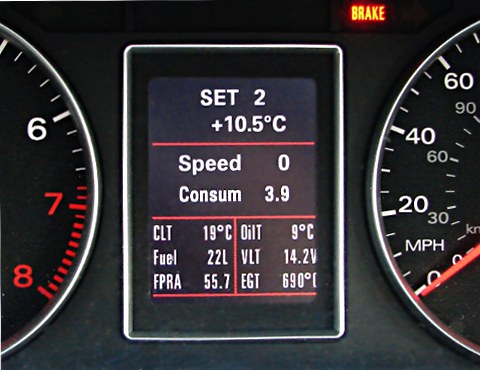

(Beware: This device uses existing FIS display of your instrument cluster and will not change red one to collorfull !)

You can choose secondary lanugage at order place time, pirmary languages is always English.



Device controll by Mulitfuction Steering Wheel is supported on A4/S4/RS4 B6/B7.

Control by RS4 MFSW is MFA alike due RS4 steering emulated Multifunction Wiper Stalk buttons.



Int.MAP is built-in extra pressure sensor deticated to measurement of boot pressue in intake manifold.



The "Valentine 1" is interface for extranal "Valentine 1" radar detector.

If in use threats are displayed in FIS display in RDS area.



Since year 2024 all devices with Ext.Inputs have build-in Bluetooth module for wireless firmware updates and data logging.


List of the comments:
No vote yet
2016-01-14 09:33
Post a comment ...
0 of 1 find it helpful
2017-01-29 16:30
Подскажите что означает. 1 красный фис ???. 2 цвет фу???. У меня а4 в7 2006г.в. Красно-оранжевый.Будут ли изменения на вашем???. Как правильно выбрать правильно ???
1 of 1 find it helpful
2017-03-18 21:04
Primarily I was searching for a possibility to check my oil temperature.
After some research I found your device.

Now I can monitor not only the temperature but many other interesting values.
(like AC pressure, FAN speed and coolant temp)
Why I mention especially this three ones?

My AC stopped working.
In VFiZ I could watch that the AC pressure was jumping up und down (between 0 and over 50 Bar).
I've changed the pressure sensor and AC worked again.
NICE

2 Days ago I was wondering why my coolant fan begin to spin even the water temperate was below 90°
Something must be wrong!
When I displayed both CLT temperatures I saw a huge difference between them (over 10 degrees)
High time to get a new sensor.
Today the sensor died: although it's above 17° outside it showed minus 25!
No chance to start the engine.
I was so glad that I had bought the spare part already.
With the new sensor (G62) build in the car worked again.
Without VFIZ I hadn't known that the the sensor was dying and had no idea where to search. ( and no spare part, too )

The possibility to check so many values without the need to plug in a laptop or extra diagnostic hardware is a great help.
